Cut the cords, leave the PC behind: 3DMakerpro unveils the all-in-one wireless 3D scanner, Toucan.

September 26, 2025 Hardware 247

Amid the ongoing evolution of 3D modeling and digital manufacturing towards "lightweight" and "high-efficiency" iterations, 3DMakerpro

Rather than competing to surpass high-end scanners in hardware specifications, it bypasses the computer by integrating the three core processes—scanning, editing, and modeling—into a single device. This clear shift in design is evidently aimed at catering to a different user group than traditional industrial customers. Designed to make 3D scanning as straightforward as taking a photo, the Toucan is a direct response to the demand for such "ready-to-use" convenience. According to 3DMakerpro, whether it's action-figure-sized models or life-sized sculptures, the device can complete the entire 3D modeling workflow without relying on external computing equipment.

Maintaining Precision and Flexibility Without a Computer
The Toucan employs a combined system of blue light projection and electromagnetic drive. Compared to conventional electrostatic structures, this system achieves a repetitive positioning accuracy of 0.005mm—a critical feature for scanning fine parts and complex surfaces.

Instead of trying to outperform high-end scanners in hardware specifications, it bypasses the computer by integrating the three key processes—scanning, editing, and modeling—into a single device. This shift in design clearly targets a different user group compared to traditional industrial customers. Aiming to make 3D scanning as straightforward as taking a photo, the Toucan is designed precisely to meet this demand for "ready-to-use" convenience. According to 3DMakerpro, whether it's figurine-sized models or life-sized sculptures, the device can complete the entire 3D modeling workflow without relying on external computing equipment.

How does it maintain precision and flexibility without a computer?
The Toucan adopts a combined system of blue light projection and electromagnetic drive. Compared to traditional electrostatic structures, it achieves a repetitive positioning accuracy of 0.005mm—a critical feature for scanning fine parts and complex surfaces.

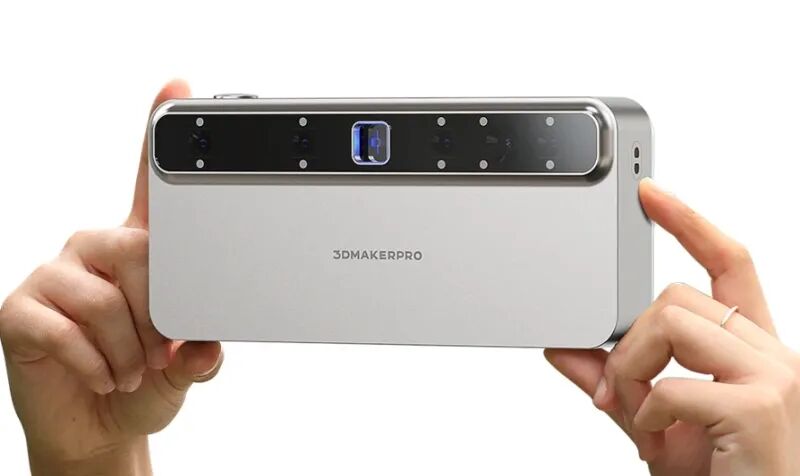

The dual-power output mode offers adaptable adjustments for different materials: the low-power mode (Class 1) meets eye safety requirements, while the high-power mode (Class 3R) provides stronger penetration for dark-colored materials. Equipped with four 48-megapixel RGB cameras, the device balances precision and texture capture capability, accommodating scanning needs ranging from small-volume models to large structures.

Hardware Configuration Fully Prepared for "Offline Operation"
Achieving true "offline" operation poses significant challenges to the device's inherent computing and storage capabilities. The Toucan comes with a built-in octa-core 2.4GHz processor, 32GB of RAM, and 256GB of storage space, supporting local processing of large-scale scanning data.

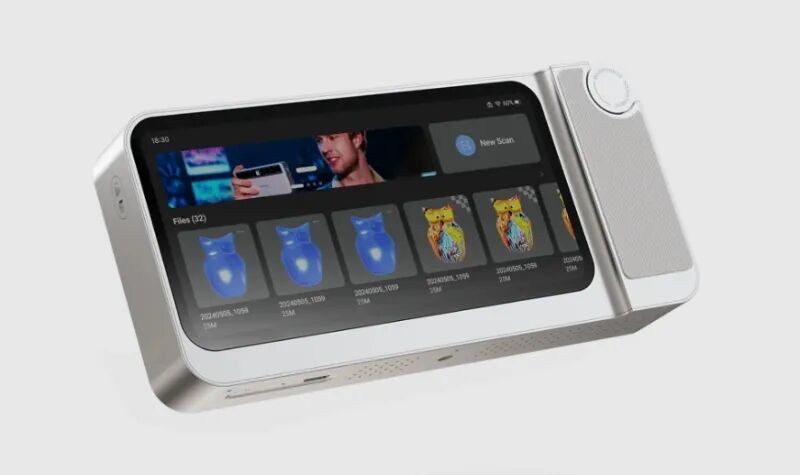

On the power front, the 6600mAh battery supports approximately two hours of operation under normal working conditions. With 50W fast-charging capability, it can regain 80% of its charge in just 30 minutes, minimizing downtime. Scanning operations and monitoring are handled via a 6-inch AMOLED touchscreen, complemented by a brightness dial and physical shortcut keys designed to enhance operational fluency during practical use.

Workflow Tailored to Real-World Application Scenarios
The Toucan also streamlines the user process to reduce the learning curve. Scanning tasks begin with creating a "New Project," after which users adjust the depth of field and brightness based on the object. Object positioning and recognition are supported through three methods: leveraging the object's own geometric features, manually placing marker points, or activating "Global Marker Mode" to improve tracking stability.

For texture capture, users can switch between "Color Mode" and "Monochrome Mode" to balance file size and detail preservation. With the scanning distance maintained between 200–250mm, full-angle coverage is achieved by manually rotating the turntable approximately 45 degrees after each scan. Upon completion, users can directly perform basic edits such as model trimming and angle adjustment on the device before generating a triangular mesh and exporting. The system defaults to providing medium-quality mesh output, and for color scanning scenarios, lower resolutions are also supported to optimize performance.

Usability and Boundaries: The Trade-offs of an All-in-One Device
The Toucan's "full-stack integration" in both scanning workflow and hardware architecture significantly lowers the barrier to entry, making it particularly suitable for mobile scenarios, space-constrained environments, or on-the-fly modeling needs in fast-paced creative workflows. However, it is not universally suited for all object types or materials.

For challenging subjects such as transparent materials, highly reflective surfaces, and fibrous structures like hair, the Toucan still encounters recognition difficulties. The manufacturer recommends using scanning spray or similar treatment methods to achieve more stable results. These limitations are common to most optical scanning systems, meaning users still need to assess the feasibility of scanning their target materials beforehand.

3D Scanning Evolves from a 'Tool' to an 'Appliance'
The positioning of the Toucan arguably represents an exploratory step in the current evolution of 3D scanning technology. By transforming 3D scanning from a traditional "peripheral tool" into a "self-contained functional appliance," it is poised to influence creators' usage habits, workflows, and even data management practices.

From a performance perspective, the Toucan is better suited for scenarios that demand operational efficiency, portability, and rapid modeling—such as studio scanning, small-batch reverse engineering, digital archiving of sculptures, or design previews. While this product may not be intended to replace high-end industrial scanning systems, the "scan-as-result" logic it represents could very well be opening up new possibilities.
